GF25 Three Phase Bar Bending Machine (8-20mm)
Professional Grade | 20mm Capacity with Industrial 3-Phase Power
Product Image
GF25 Three Phase Bar Bending Machine
The Professional's Choice for Medium-Scale Projects
The GF25 Three Phase combines the best of both worlds: 20mm bending capacity with industrial three-phase power for continuous heavy-duty operation. This is the machine for serious contractors handling multiple projects, apartment buildings, and medium-scale commercial construction. The 3kW motor delivers consistent power for bending larger bars all day long.
Why Choose GF25 Three Phase:
- 20mm Maximum Capacity — Handle main bars for G+3/G+4 buildings
- 3kW Three-Phase Motor — Industrial power for continuous operation
- Best for Multi-Project Contractors — Reliable workhorse for daily use
- Fabrication Unit Ready — Excellent duty cycle for high-volume work
- Complete 8-20mm Range — One machine for stirrups and main bars
Delivery: 1-3 days | Charges as per actuals
GF25 Three Phase - Built for Growing Construction Businesses
The Right Machine for Scaling Up
When your construction business grows from single houses to apartment buildings and commercial projects, your equipment needs to grow too. The GF25 Three Phase is designed for contractors who've outgrown entry-level machines but don't yet need the heavy-duty industrial equipment. It's the sweet spot - capable enough for serious work, affordable enough for medium-scale operations.
Why This Machine Makes Business Sense
For Multi-Project Contractors
Running 3-4 sites simultaneously? The GF25 3-Phase handles the load. Process stirrups for multiple buildings without breaking a sweat.
For Small Fabrication Units
Supplying bent rebar to other contractors? This machine handles the volume with its industrial duty cycle.
For Apartment Building Projects
G+3 and G+4 buildings need 20mm main bars. Process them efficiently along with all your stirrups on one machine.
For Long-Term Investment
Three-phase motors last longer under heavy use. Buy once, use for years across dozens of projects.
Complete Model Comparison
| Model | Capacity | Power | Price | Best For |
|---|---|---|---|---|
| GF20 1-Phase | 8-16mm | 220V | ₹33,000 | Small houses |
| GF20 3-Phase | 8-16mm | 415V | ₹35,000 | High-volume 16mm work |
| GF25 1-Phase | 8-20mm | 220V | ₹35,000 | G+2/G+3 without 3-phase |
| GF25 3-Phase ⭐ | 8-20mm | 415V | ₹38,000 | Professional contractors |

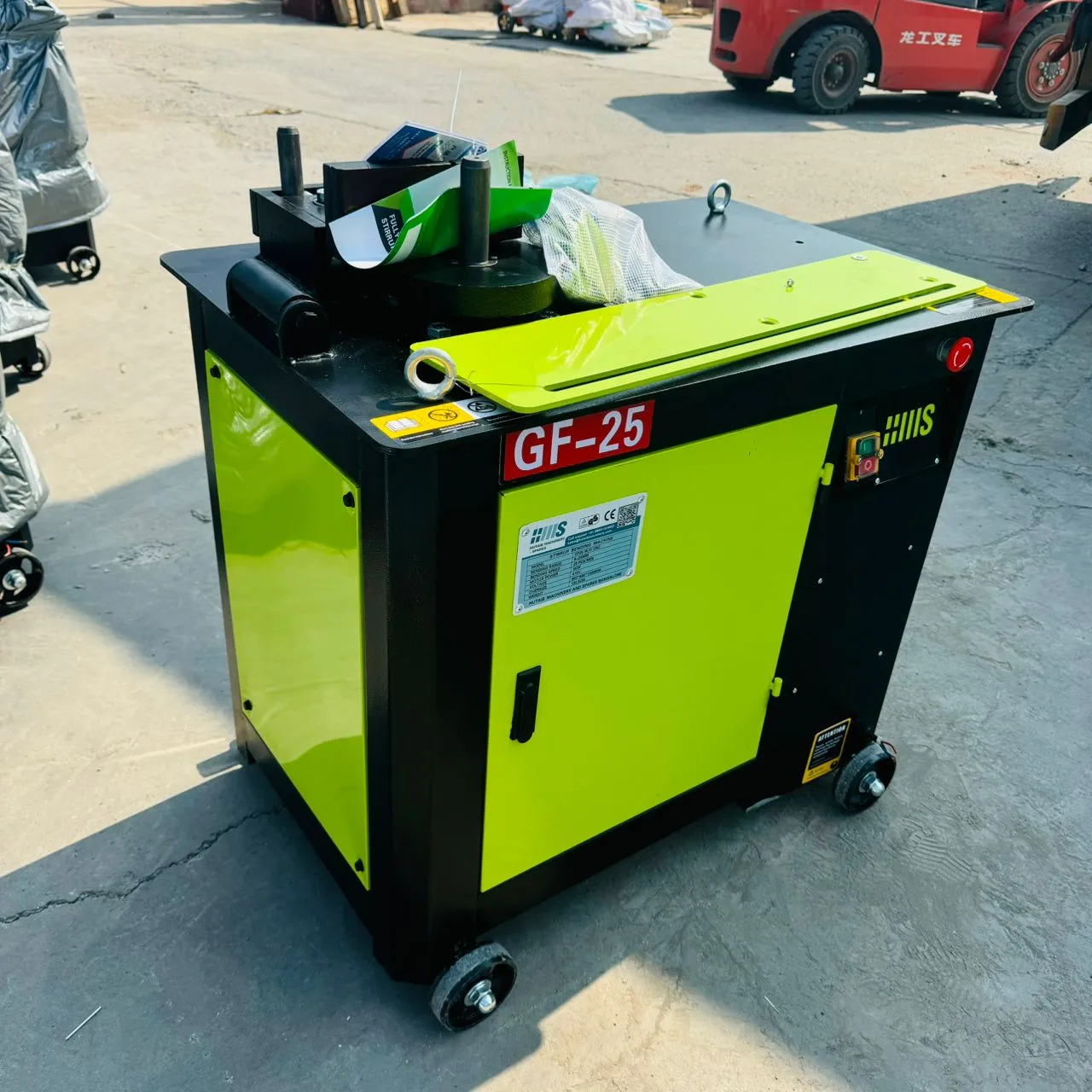

Gallery Image 1

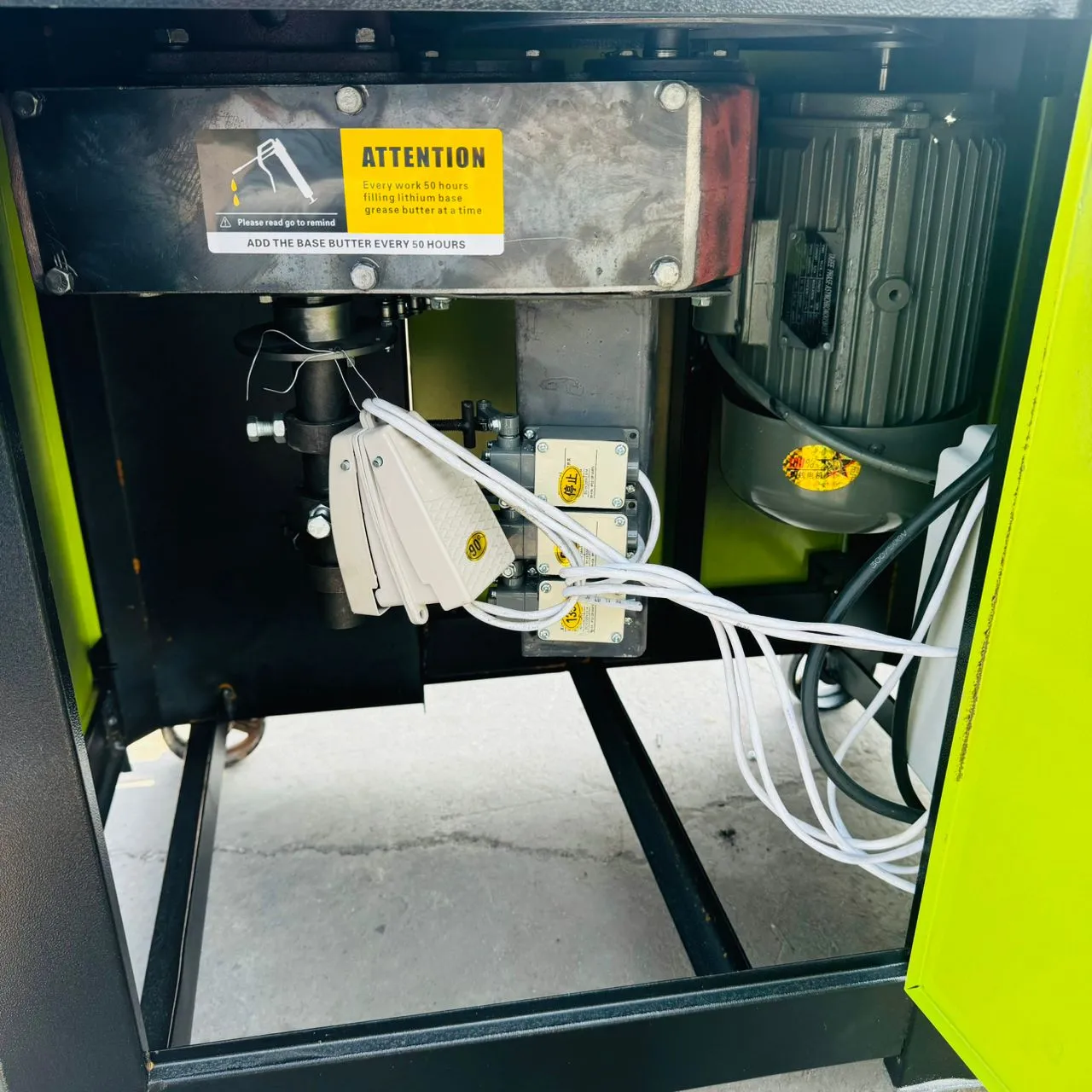

Gallery Image 2

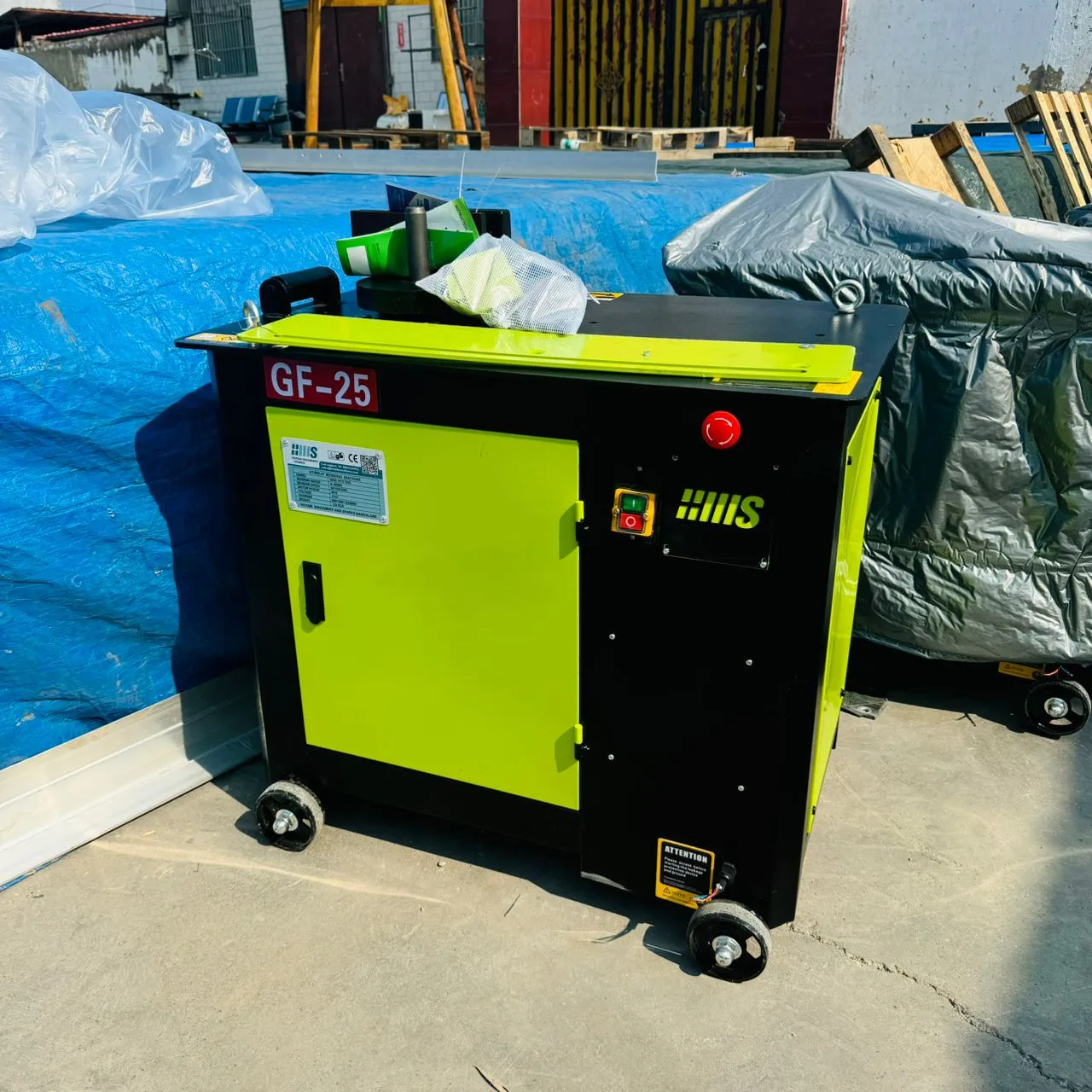

Gallery Image 3
Technical Specifications
| Specification | GF25 Three Phase |
|---|---|
| Model Number | GF25-3PH |
| Bending Capacity | 8mm - 20mm TMT/HYSD bars |
| Power Supply | 415V, Three Phase, 50Hz |
| Motor Power | 3.0 kW / 4 HP |
| Bending Angle Range | 0° - 180° |
| Bending Speed | 25-30 bends/minute |
| Machine Weight | ~105 kg |
| Dimensions (L×W×H) | 750mm × 520mm × 780mm |
| Control Type | Foot Pedal Operation |
| Bending Disc Diameter | 320mm |
| Duty Cycle | Continuous (Industrial) |
| Warranty | 6 Months* |
| Price | ₹38,000 + GST (18%) |
⭐ Best Value Professional Machine
The GF25 Three Phase offers the best balance of capacity (20mm), power (3kW), and price (₹38,000) for professional contractors. Industrial duty cycle ensures reliable operation for high-volume work.
*Warranty Terms: 6-month warranty covers manufacturing defects only. Does not cover spares, consumables, or damage from improper use/manual misuse. Delivery charges as per actuals. Installation and operator training available at additional cost.
Benefits of GF25 Three Phase
The GF25 Three Phase is the professional contractor's choice - combining 20mm capacity with industrial three-phase power for maximum productivity and reliability. When your business demands both capability and continuous performance, this is the machine.
Best of Both Worlds
20mm Capacity
Handle main reinforcement bars for buildings up to G+4. The 8-20mm range covers everything from stirrups to main columns in one machine.
Industrial 3-Phase Power
The 3kW three-phase motor delivers consistent power for continuous operation. Run all day without overheating or slowdowns.
High-Speed Operation
Achieve 25-30 bends per minute - significantly faster than single-phase alternatives. More output per hour, more profit per project.
Professional Durability
Built for daily professional use. Heavy-duty construction handles the demands of busy fabrication operations year after year.
The Business Case for GF25 Three Phase
Who Should Buy This Machine
Multi-Project Contractors
Handling 4-6 residential or commercial projects per year? This machine handles the workload efficiently across all your sites.
Small Fabrication Yards
Supplying bent rebar to other contractors? The continuous duty cyclemeans reliable production for your customers.
Apartment Building Contractors
G+3 and G+4 apartments need 20mm bars in quantity. This machine produces them quickly and consistently.
Growing Construction Businesses
Ready to scale up from small houses? The GF25 3-Phase is your gateway to professional-level equipment.
Why ₹38,000 is the Smart Investment
- ✓vs GF25 Single Phase (₹35K): Get industrial duty cycle and faster speed for just ₹3,000 more
- ✓vs GW42 (₹75K): Save ₹37,000 if you don't need 32mm+ capacity
- ✓vs Manual Bending: ROI in 3-4 projects through labor and time savings
- ✓vs Renting: Own the machine outright after equivalent of 6-8 months rental
Ideal Applications for GF25 Three Phase
The GF25 Three Phase is engineered for professional contractors handling medium to large scale projects. With 20mm capacity and industrial power, it's the workhorse for serious construction businesses.
🏢 Apartment Buildings (G+3/G+4)
Multi-story apartment complexes require significant quantities of 16-20mm main bars along with 8-10mm stirrups. Handle both efficiently with one machine.
- • 20mm column main bars
- • 16mm beam reinforcement
- • High-volume stirrups
🏭 Fabrication Yards
Small to medium fabrication businesses serving multiple contractors. The industrial duty cycle handles daily production demands reliably.
- • Custom bend orders
- • Batch production
- • Multi-client servicing
🏗️ Commercial Construction
Shopping complexes, office buildings, and light industrial structures where professional-grade equipment is expected.
- • Commercial complexes
- • Office buildings
- • Warehouse structures
The Right Choice For Professional Operations
✅ Multi-Project Contractors
Running 4-6 projects simultaneously? The GF25 3-Phase handles the combined workload with its high throughput and continuous operation capability.
✅ Construction Company Fleets
Adding to your equipment fleet? The GF25 3-Phase is the reliable 20mm machine that your operators can depend on project after project.
✅ Growing Fabrication Businesses
Starting or expanding a fabrication supply business? The GF25 3-Phase is affordable enough to start with, capable enough to grow with.
✅ Institutional Projects
Schools, hospitals, and government buildings often specify higher-grade construction requiring 20mm bars. Meet specifications reliably.
🎯 When GF25 3-Phase is the Right Choice
Project Size
- • G+3 and above buildings
- • 3+ projects running
- • Commercial construction
Daily Volume
- • 200+ bends per day
- • Regular 20mm work
- • 6+ hours operation
Business Stage
- • Established contractors
- • Growing businesses
- • Fabrication units
What Our Customers Say
"The GF25 three phase is our main production machine. We process stirrups and main bars for 5-6 contractor clients. It runs 8+ hours daily and has never let us down. Excellent ROI."
Manjunath Swamy
Fabrication Unit Owner, Bengaluru
"After comparing all options, GF25 3-Phase was the clear choice. 20mm capacity with industrial power at ₹38,000 is unbeatable value. Our apartment projects run smoothly now."
Prakash Reddy
Apartment Builder, Hyderabad
"Upgraded from GF20 three phase to GF25 when we started G+4 projects. The 20mm capacity was exactly what we needed. Same reliable HMS quality we trusted."
Suresh Babu
Construction Company, Chennai
"Running three construction sites simultaneously. One GF25 3-Phase at our central fabrication area serves all three. Production capacity is more than sufficient."
Vivek Sharma
Multi-Project Contractor, Kochi
"Professional machine at a reasonable price. The 3kW motor handles continuous bending without issues. We've processed thousands of bends over 18 months with zero problems."
Nagendra Rao
Infrastructure Contractor, Vijayawada
"Best investment for our growing business. Started with residential, now doing commercial projects. The GF25 handles everything we throw at it. Highly recommend."
Ibrahim Khan
Building Contractor, Belgaum
The Professional's Choice
Join serious contractors who chose GF25 Three Phase
Purchase Terms & Support
📋 6-Month Warranty
Covers manufacturing defects. Does not cover spares and damage from manual misuse.
🚚 Delivery: 1-3 Days
Delivery charges as per actuals based on location.
🔧 Installation (Optional)
Professional installation available at extra cost if required.
📚 Operator Training (Paid)
On-site training available at additional cost.
Frequently Asked Questions
Why choose GF25 three phase over the single phase version?
The GF25 Three Phase has a more powerful 3kW motor (vs 2.2kW) with continuous duty rating. It bends faster (25-30 vs 18-22 bends/min) and can run all day without overheating. Choose three phase if you have industrial power and need high-volume or continuous production.
Is GF25 three phase suitable for apartment building projects?
Yes, it's ideal. G+3 and G+4 apartment buildings use significant quantities of 20mm main bars plus 16mm secondary bars and 8-10mm stirrups. The GF25 3-Phase handles all of these efficiently with its industrial duty cycle.
How does GF25 compare to larger machines like GW42?
GF25 (8-20mm, ₹38K) is for most residential and small commercial work. GW42 (16-32mm, ₹75K) is for heavy infrastructure with 25mm+ bars. If your projects don't require bars above 20mm, the GF25 saves you ₹37,000 while meeting your needs.
What's the production capacity per day?
With continuous three-phase operation, expect 800-1000+ bends per day across all sizes. The machine can run 8-10 hours daily without issues. Actual output depends on bar sizes and operator efficiency.
Can one machine handle both stirrups and main bars?
Yes, the 8-20mm range covers both stirrup work (8mm, 10mm) and main bar bending (12mm, 16mm, 20mm) in one machine. This is one of the key advantages - no need for separate machines for different tasks.
What power connection is required?
415V three-phase, 50Hz with minimum 7kVA capacity. This is standard at industrial facilities, fabrication yards, and most commercial construction sites. Please ensure your site has proper electrical setup before purchase.
Is this good for starting a fabrication business?
Excellent choice. At ₹38,000, it's affordable enough to start with, yet capable enough to serve multiple contractor clients. The 20mm capacity and industrial duty cycle make it a serious production machine.
What warranty and support is included?
6-month warranty covering manufacturing defects only (does not cover spares or damage from manual misuse). Delivery charges as per actuals. Installation and operator training available at additional cost. Contact us via phone or WhatsApp for technical support.
How does delivery and installation work?
Delivery typically takes 1-3 days depending on your location. Delivery charges are as per actuals. Please ensure your site has three-phase power available. Installation and operator training available at additional cost.
Can I upgrade from GF20 to GF25 later?
Yes, we offer trade-in options for existing customers. If your projects grow to require 20mm capacity, contact us about upgrading. Many customers start with GF20 and upgrade to GF25 as their business grows.
Ready to Order?
The GF25 Three Phase at ₹38,000 is our best value professional machine. Get in touch to place your order or ask any questions.
